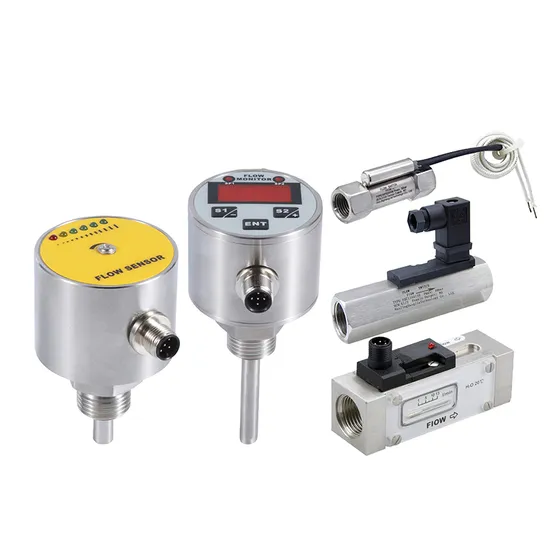

24VDC/220VAC Display Window Adjustable Water Flow Switch

Basic Info.

Model NO.	FS20
Operation Temperature	90ºC
Maximal Withstand Voltage	50bar, 100bar
Contact Capacity	24VDC/250VAC, 100mA
Transport Package	Carton
Trademark	HangJia
Origin	China
HS Code	902610
Production Capacity	50000 Pieces / Year

Product Description

Product Overview:

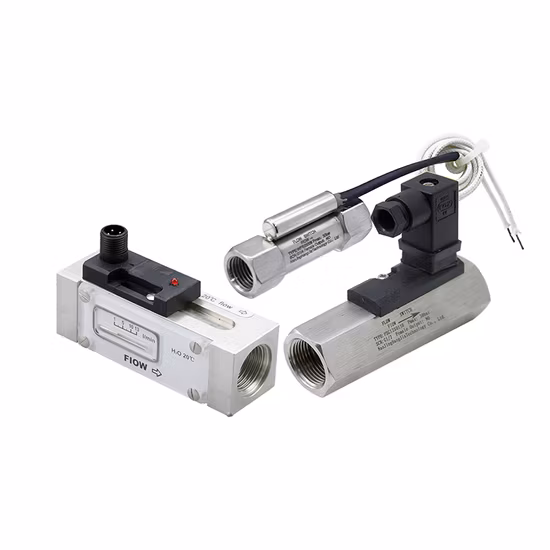

FS20 Flow Switch is made of stainless steel housing, aluminum can be selected. Easy installation, is a mechanical flow switch, for liquid or gaseous media. Mechanical part and electronic part are completely isolated, suitable for small flow economy type.
Features:

^{Minimal pressure loss, good repeatability and stain resistance}
^{With a switch setting scale, users do not need to set in the field.}
^{Dual-use for vapor and liquid , can be used for water-cooling system and hydraulic system}
^{LED display switch status, dual switch output selected}

Parameters:

Measuring Medium	Water,Gas,Oil
Accuracy	±0.5%F.S
Hysteresis	Depending on switching point, minimum 0.6L/Min
Switch setting	Calibrated in the medium water, temperature 20ºC, the horizontal installation status. (Note:The installation location, medium and temperature changes may affect the switch value slightly)
LED display	DC power supply LED display switch status, AC no LED display
Output Signal	Reed switch
Contact Capacity	24VDC/250VAC,100mA
Max Withstand Voltage	50bar (aluminum), 100bar(stainless steel)
Average pressure loss	0.3bar( at 25L/min)
Ingress Protection	IP65
Medium max Temperature	90ºC
Electrical Connection	M12

Structure Drawing(Unit:mm)Structure Material
.Case: stainless steel or aluminum
.Piston: POM
.Spring: stainless steel
.Seal: NBR
Ordering Guide:
